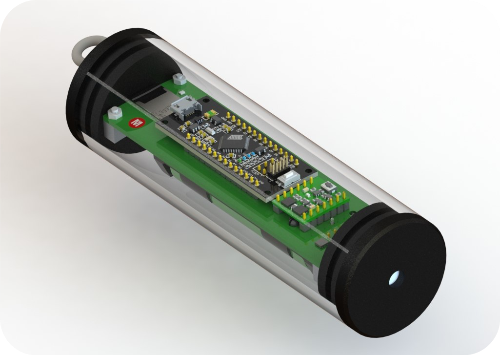

MS Pressure Logger
The Modular Sensing Pressure Logger can be used to monitor water levels or absolute pressure changes in a wide range of applications, including rivers, lakes, dams, fishways, tidal areas, and groundwater. The logger is easily configurable without needing external applications by standard USB connection. This logger features a high precision ceramic pressure sensor in a stainless steel housing and factory-calibrated temperature sensor, both embedded in a durable IP68 polycarbonate housing. The programmable recording time provides an ideal solution for long time recording of water level, pressure and temperature in monitoring campaigns, research studies, etc.
Version 1.2

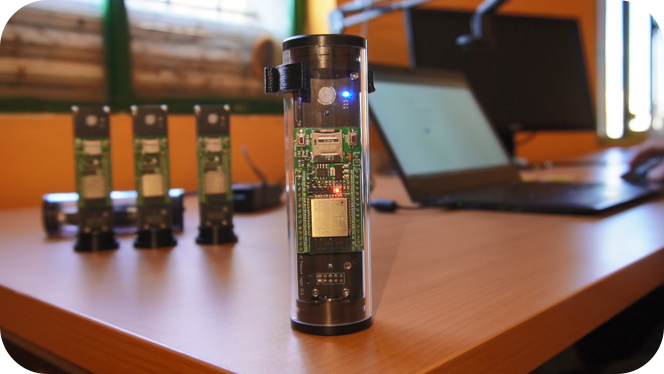

MC Pressure Logger V2
The new version of the MC Pressure Logger sensor, like the previous one, is a solution designed to measure water levels or absolute pressure in a wide range of applications. It now features WiFi connectivity for configuration and data downloading. It has a high-precision ceramic pressure sensor in a stainless steel housing and a factory-calibrated temperature sensor, both integrated into a durable IP68 polycarbonate housing, with a programmable data logging time. It is now easier to use and has a longer battery life (> 3 years).
Versión 2.0 (2023)

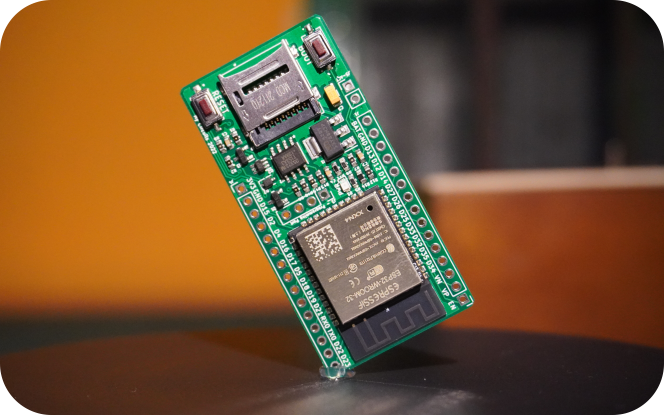

MC Sentinel
Sentinel is an all-in-one open development board designed for environmental monitoring, IoT, data logging, and teaching. It is based on the ESP32 microcontroller and integrates an autopowering circuit, a real-time clock, and an SD card. The board is designed to work with 3.7V batteries (3-5V) and can automatically switch on and off, allowing it to record for years with a single battery.
Version 1.1 (2023)
Video

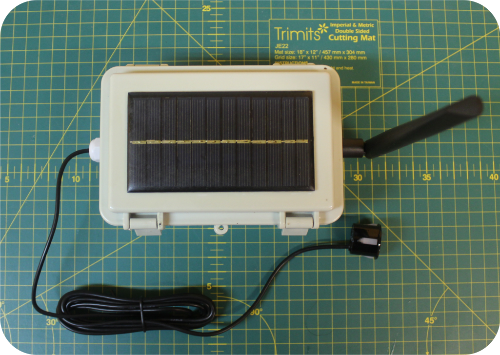

MS Ultra
The Modular Sensing Ultra (MS Ultra) can be used to monitor water levels in a wide range of applications, including rivers, lakes, dams, fishways, tidal areas, and groundwater. The device is easily configurable without needing external applications by standard USB connection. MS Ultra can work standalone as an autonomous independent sensing platform or inside a sensor network, thanks to the on-board LoRa module. This sensor features a high precision ultrasound sensor, solar panel and electronics embedded in durable IP68 ABS housing. The programmable recording time provides an ideal solution for long time recording of water level. Moreover, its architecture makes easy to incorporate other environmental sensor (temperature -air or water-, humidity, barometric pressure, etc.). The system is compatible with our on-line management and configuration platform.
Version 1.1

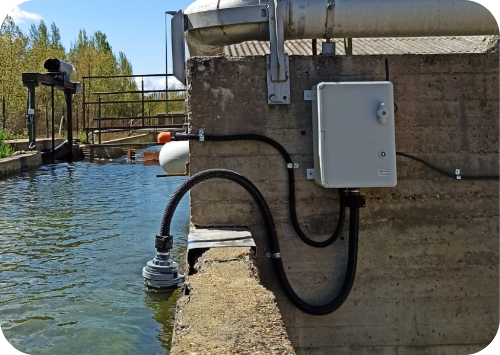

MS Quality
The Modular Sensing Quality (MS Quality) is a multiparameter sonde based in open hardware and software designed to monitor water quality parameters in a wide range of applications, including fish farms, rivers, lakes, or fishways. The device is easily configurable without needing external applications by standard USB connection. MS Quality features water quality sensors such as pH, dissolved oxygen, conductivity and water temperature. The sensor suite is configurable, thus it is possible to include other water quality, water level (ultrasound, pressure) or other environmental (air temperature, humidity, barometric pressure) sensors. MS Quality can work standalone as an autonomous independent sensing platform (gateway + sensing node) or inside a sensor network (node), thanks to the on-board communication modules. The programmable recording and transmission time provides an ideal solution for long time monitoring of environmental variables. The system is compatible with our on-line management platform.
Version 1.0
