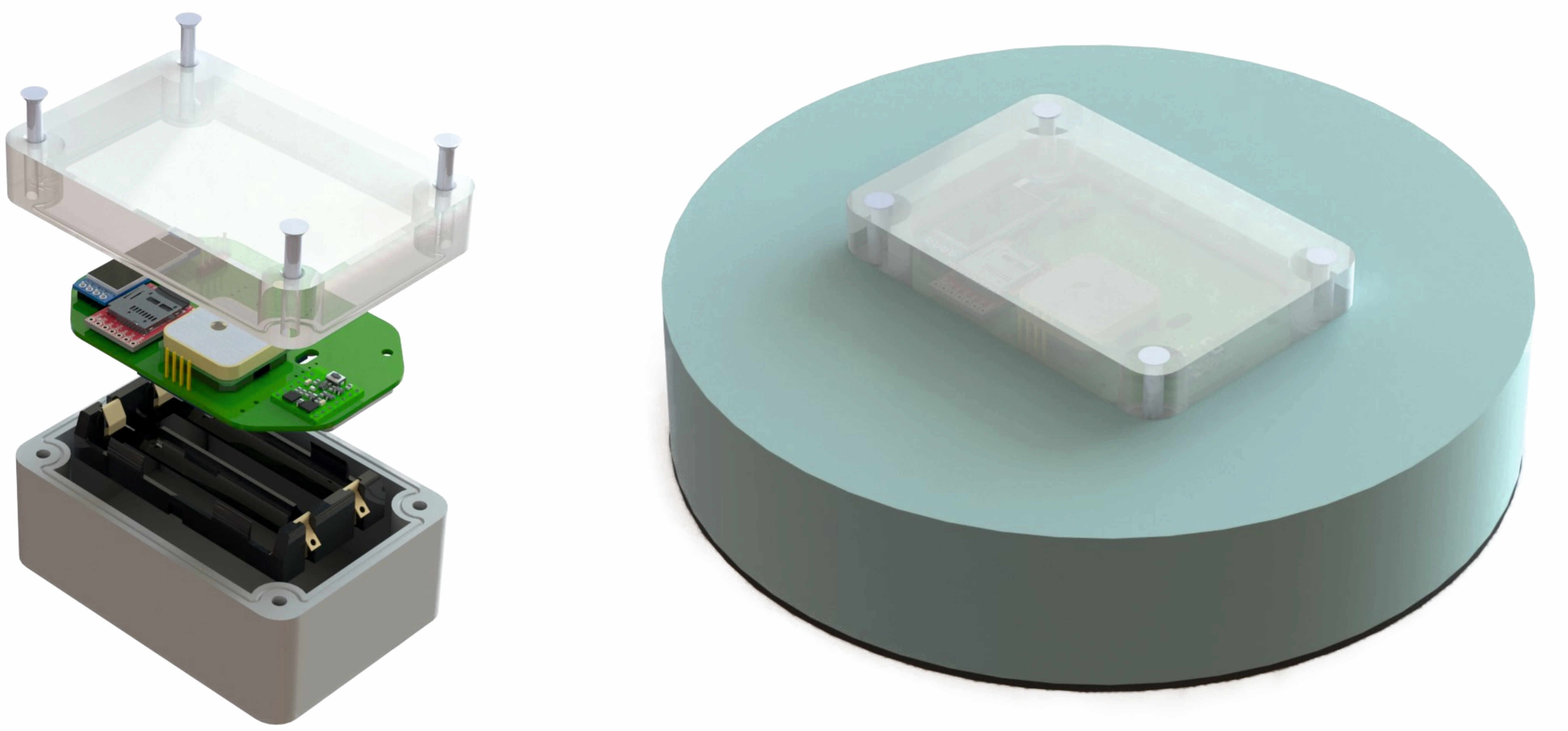

The “Open Drifter” (OD) is a small river drifter developed by the Centre for Biorobotics at Tallinn University of Technology and supported by GEA. The OD is an IoT device that can provide real-time estimates of position, travel speed, accelerations, orientations, or magnetic fields using mobile or radio communication at 1 Hz as well as onboard recording at 5-10 Hz. These properties make the drifter an ideal tool for the instantaneous characterization of small to large river streams. The OD is developed with low-cost open software and hardware which makes affordable the scalability of its production.
Overview & list of components
PCB files

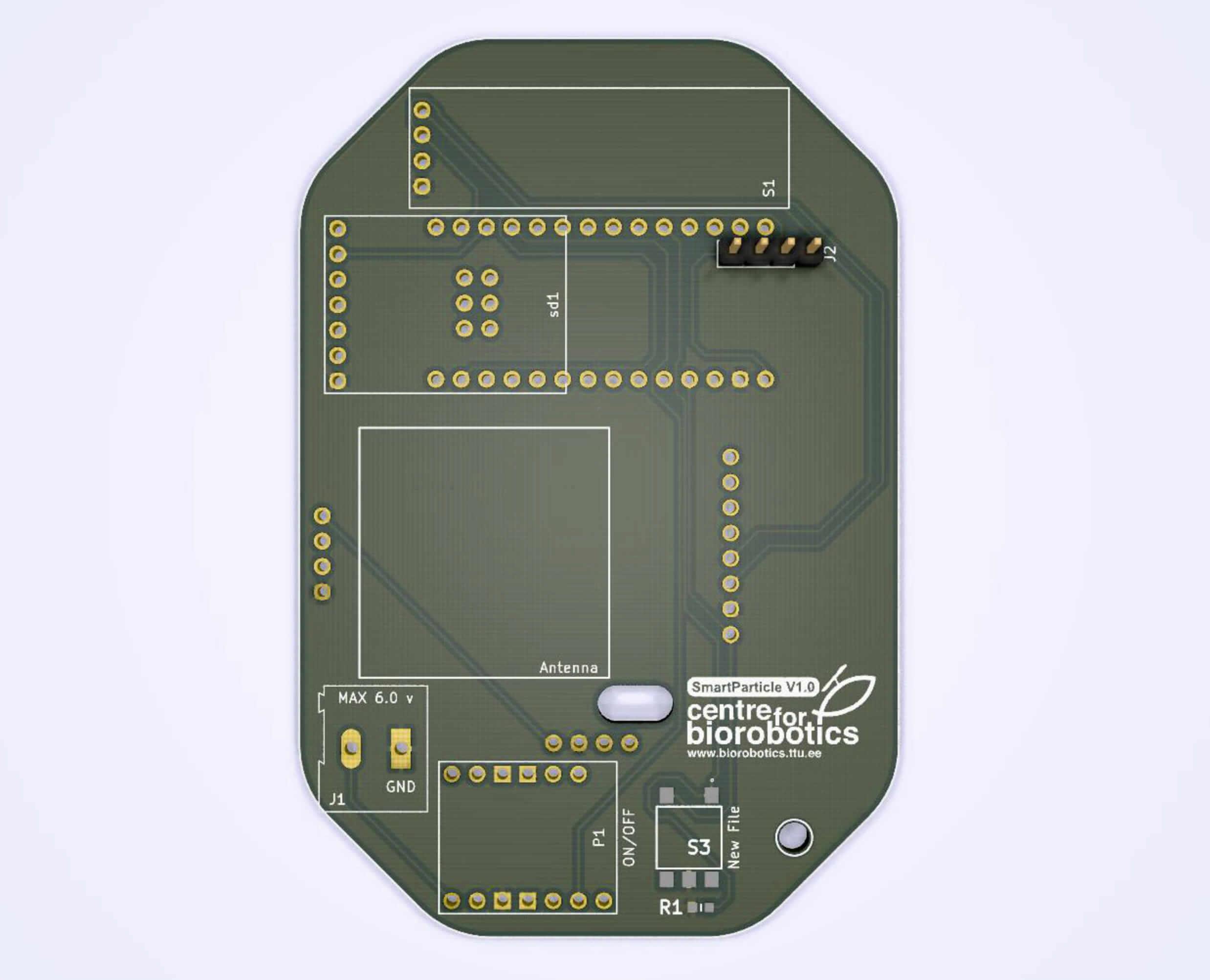

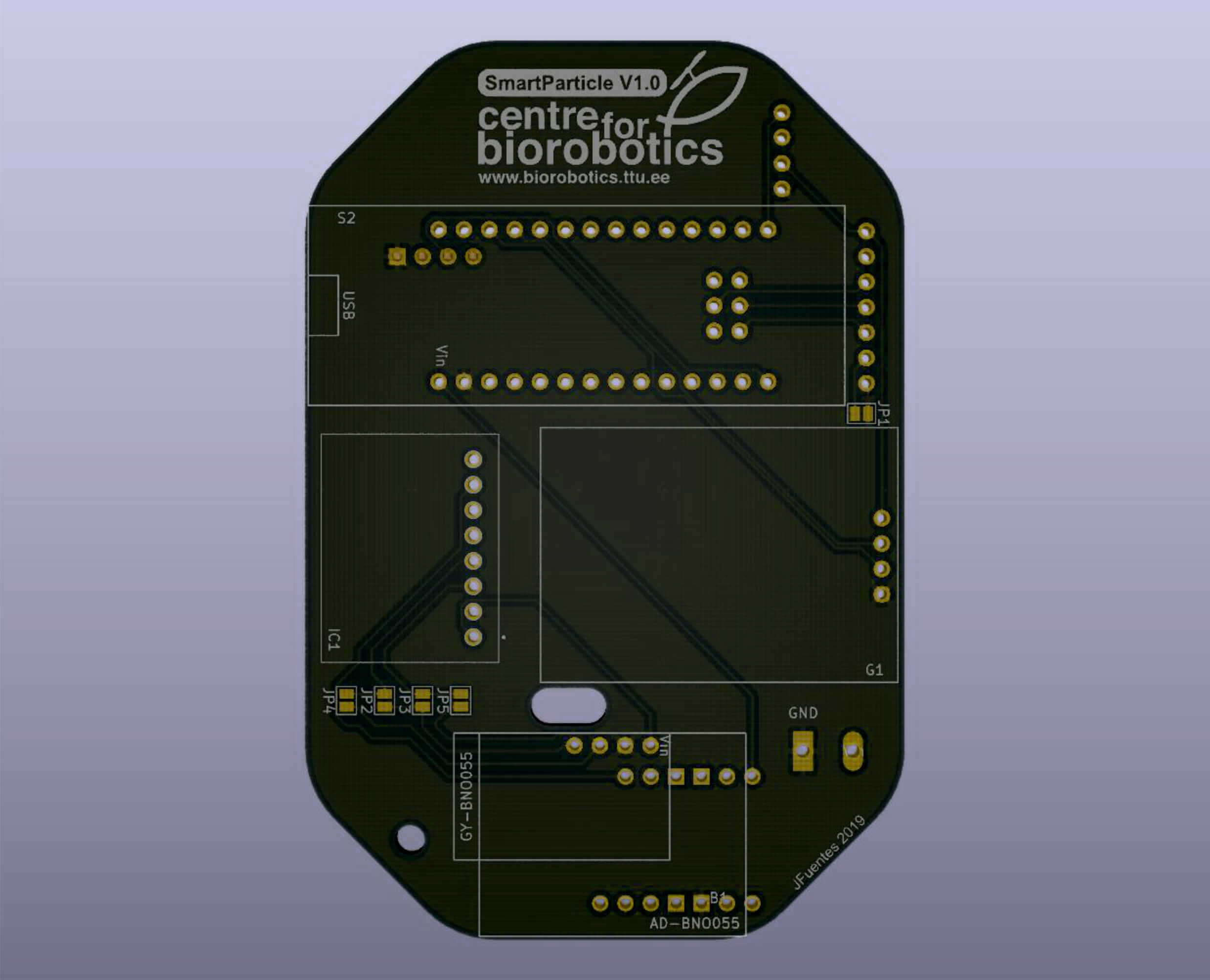

Main board connections (pdf)
Main board PCB files (gerber files)

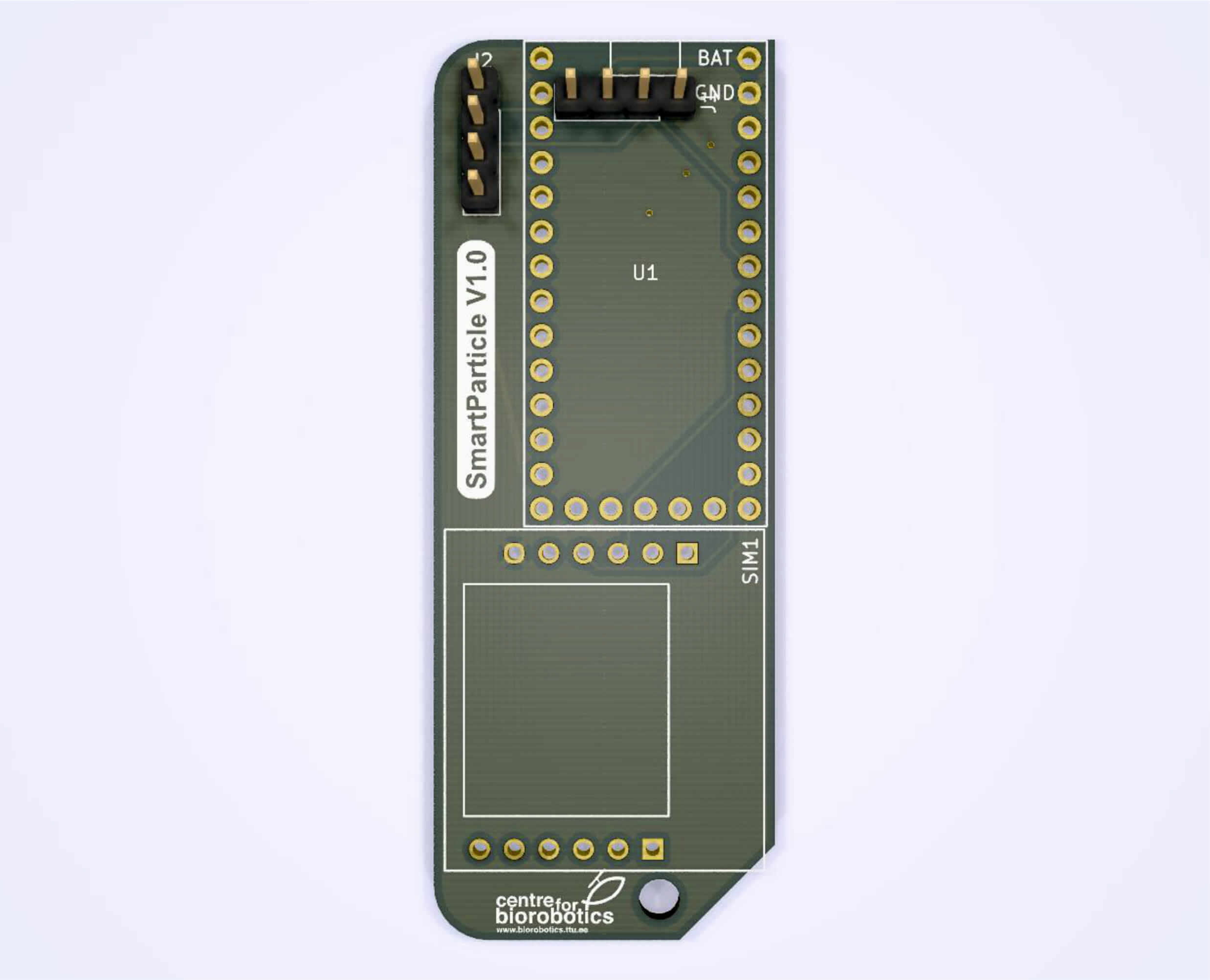

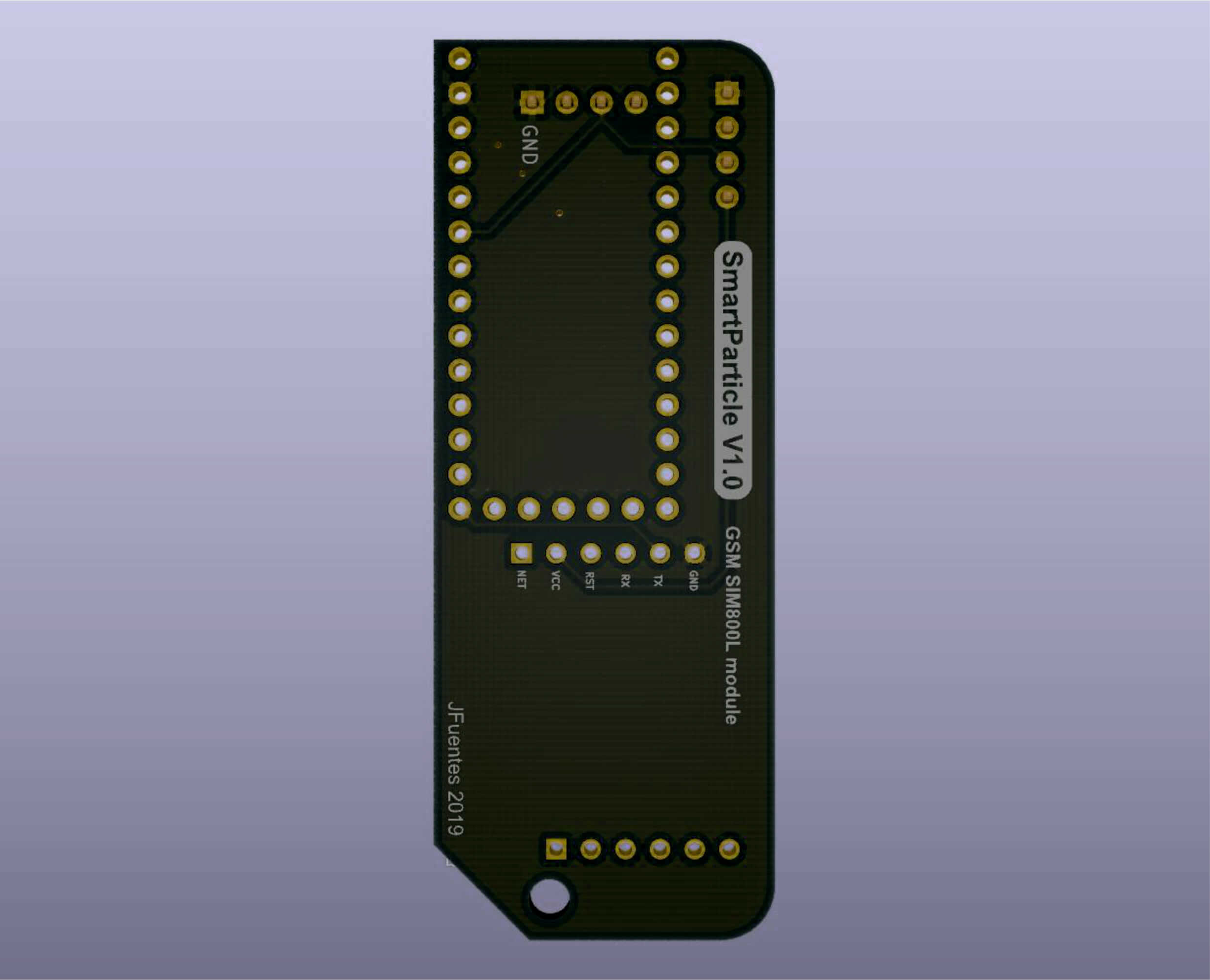

GSM communication board connections (pdf)
GSM communication board PCB files (gerber files)
Arduino code & libraries
Main board code (.ino)
GSM board code (.ino)
Radio transmission board code (.ino)
Radio receiver board code (.ino)
Arduino libraries (collection of libraries)
U-center software for GNSS configuration: u-center v18.08 (third party software)
SPart Software
SPart 1.0 for Windows (Recommended: Win 10 and newer)
Plotpoint.txt file example (Check the readme file)
Bug reporting & Updates
We are continuously improving OD. Contact us if you have any improvement suggestion. Contact authors in the following emails:
